3000W Pure Sine Wave Power Inverter 12V/24V/48V to 220V, Heavy Duty for RV Home Backup with LCD Display & Protection
3000W Pure Sine Wave Power Inverter 12V/24V/48V to 220V, Heavy Duty for RV Home Backup with LCD Display & Protection
通常価格
$274.75
通常価格
セール価格
$274.75
単価
あたり
税込。
配送料はチェックアウト時に計算されます。
受取状況を読み込めませんでした
Product Description
| Output | |||
| Rated power(Wt) | 3000W | ||
| Peak power(Wt) | 6000W | ||
| AC Voltage (AC) | AC220V/230V/240V ±10% | ||
| Wave Form | Pure sine wave（THD<3%） | ||
| Frequency(Hz) | 50Hz/60Hz±1Hz | ||

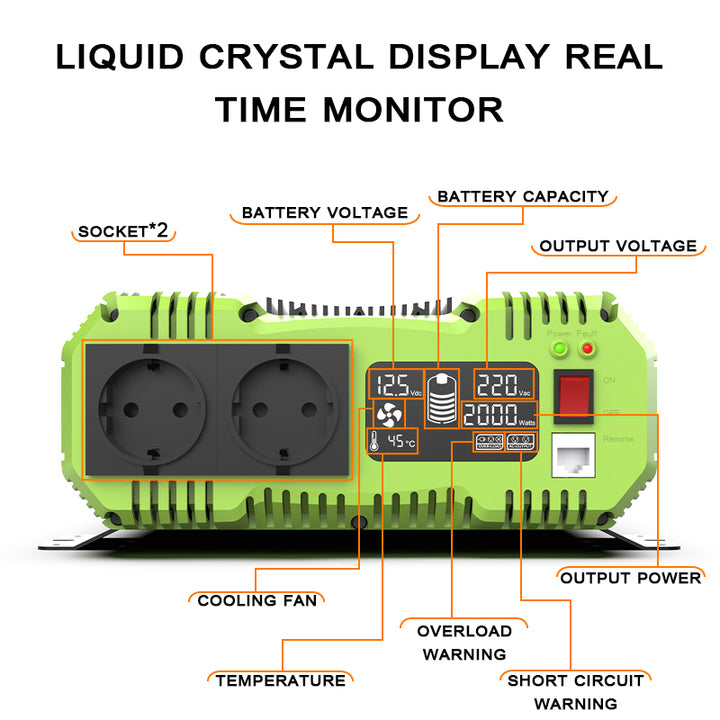

| Panel LCD show | Isolated LCD digital color screen：Battery power % ratio,Battery voltag,AC voltage, AC power, Temperature | ||
| Input | |||
| Battery Voltage(V) | 12V | 24V | 48V |
| Voltage Rrange(V) | DC10-15V | DC20-30V | DC40-60V |
| DC Current(I) | 300A | 150A | 75A |
| No load Current Draw(W) | ≤12.9W | ||
| Efficiency | 88%~92% | ||
| Battery Type | Open&sealed lead-acid battery(Customized lithium battery parameter ) | ||
| Battery Input Protection | |||
| Internal Fuse | 40A*12 | 40A*6 | 40A*6 |
| Low voltage alarm | Yes | Yes | Yes |
| Low voltage cutoff | 10V±4% | 20V±4% | 40V±4% |
| Battery reverse polarity protection | By blowing the internal fuse | ||
| Output Protection | |||
| Over temperature protection |
When the temperature is ≥ 85℃, the AC output will be turned off, and the alarm will sound 5 (continuously) |
||
| Temperature ≤ 75℃ automatic recovery | |||
| Overload protection | Rated load > 110%～130%,alarm 15sec and turnoff, recovery by the reset switch | ||
| Rated load > 130%～150%,alarm 5sec and turnoff, recovery by the reset switch | |||
| Rated load > 150%,alarm 2sec and turnoff, recovery by the reset switch | |||
| Short circuit protection | Turn off within 2 seconds, recovery after resetting the switch | ||
| Environment | |||
| Working temperature | -25° +80° | ||
| Working Environment | -25° +45° | ||
| Working humidity | 30%～90% RH,No condensation | ||
| Storage temperature | ﹣20℃ ～ +70℃ | ||
| Vibretion resistance | 10～500HZ 2G 10min/cycle,X、Y、Z axis 60min respectively | ||
|
Cooling method
|
Load power > 50%, FAN ON/ <35%, Fan Off. Temperature > 50±5℃, Fan On / < 45±5℃ Fan Off | ||
| Safety Electromagnetic Compatibility | |||
| Safety Specification | CE/CB | ||
| Pressure Resistance | Bat-PG:500VAC Bat-AC:1.5KVAC AC-FG:1.5KVAC | ||
| Insulation Resistance | Bat-PG,AC -FG:100M Ohms/500VDC/25℃/70%RH | ||
Packing & Delivery

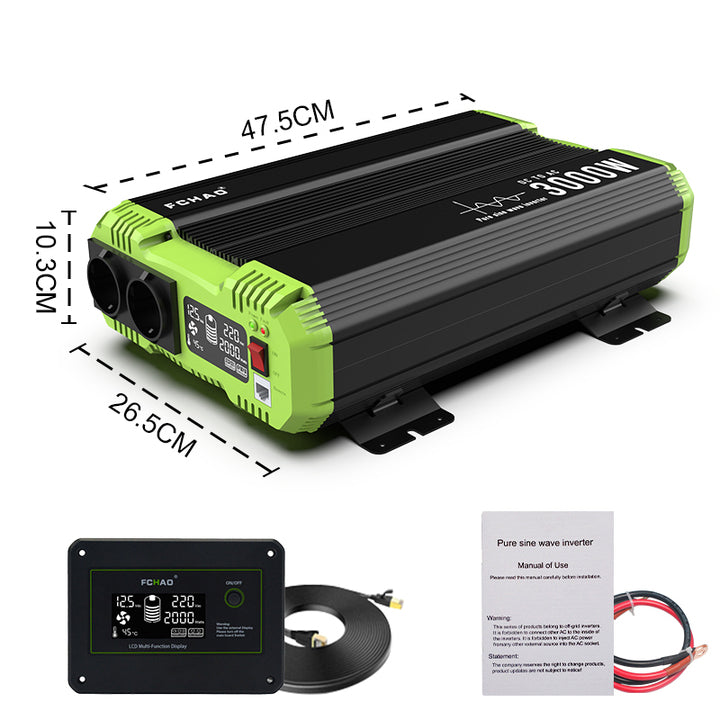

| Product Size | 47.5×26.5×10.3CM |
| Product N.W. | 5.75kg |
| Inner Box Size | 52×32.5×18.3CM |
| Outer Box Size | 53.5×34×39.6CM |
| Piece/Carton | 2 Piece/Carton |
| Gross Weight | 14.95kg |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Other
- Efficiency test: (12.8V/25.6V/51.2V) DC input voltage, 60% power measured.
- All parameters not specified above are measured at rated load, 25℃ ambient Temperature
- Output derating curve refer Figure 1(Base on environment temperature)
- Output derating curve refer Figure 2(Base on battery voltage and load power)
Product Image(s)
Company Profile
FAQ
Q1: How long can you offer the samples?
A：If shipped from overseas warehouse, we can ship within 3 days. If you choose to ship from China, we can ship using FedEx, UPS, DHL or the courier of your choice, and the samples will ship within 3 days.
Q2: What certificates do your products have?
A: FCHAO products have obtained CB and CE certificates, which can meet the import requirements of most countries.
A: FCHAO products have obtained CB and CE certificates, which can meet the import requirements of most countries.
Q3: Can you supply OEM &ODM services?
A: Yeah, but there is a minimum order quantity required.
A: Yeah, but there is a minimum order quantity required.
Q4. How long is the warranty?
A: Our warranty is for 1 year.
A: Our warranty is for 1 year.
Q5: Why your quotation is higher than other suppliers?
A: The price of the product is directly proportional to the quality, and you can see our customer reviews, which are all compliments of our products. We have extremely high-quality requirements for our products, and the materials are expensive and stable in performance. There are many low-priced inverters on the market, and they are assembled using second-hand defective materials, which have a very large safety hazard. So please choose a high-quality and stable and safe inverter.
A: The price of the product is directly proportional to the quality, and you can see our customer reviews, which are all compliments of our products. We have extremely high-quality requirements for our products, and the materials are expensive and stable in performance. There are many low-priced inverters on the market, and they are assembled using second-hand defective materials, which have a very large safety hazard. So please choose a high-quality and stable and safe inverter.
Q6: May I take some samples to test before placing the order?
A: Yes, but customers need to pay for the sample fees and express fees, and they will be returned when the next order is confirmed.
A: Yes, but customers need to pay for the sample fees and express fees, and they will be returned when the next order is confirmed.
Q7: What's the payment term?
A: We accept TT, 30% deposit, and 70% before delivery.
A: We accept TT, 30% deposit, and 70% before delivery.
Q8: How's the delivery time?
A: According to the quantity.
A: According to the quantity.
